VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in West Covina, CA | Hale Windows West Covina

The VLX 100 Swing / Entry Door is a modern aluminum entry system that pairs a clean, minimalist frame with a multi-point locking mechanism. Homeowners across West Covina choose it when they want a front door that makes a clean architectural statement without sacrificing security or energy performance. As an authorized ViewLux installation partner, Hale Windows West Covina supplies, installs, and warranties this door properly, which matters more than most people realize. A high-performance door installed wrong is just an expensive problem. If you’re researching this specific product, call (707) 506-0502 and we’ll walk you through real pricing for your opening size.

Call (707) 506-0502

Product Overview – VLX 100 Swing / Entry Door

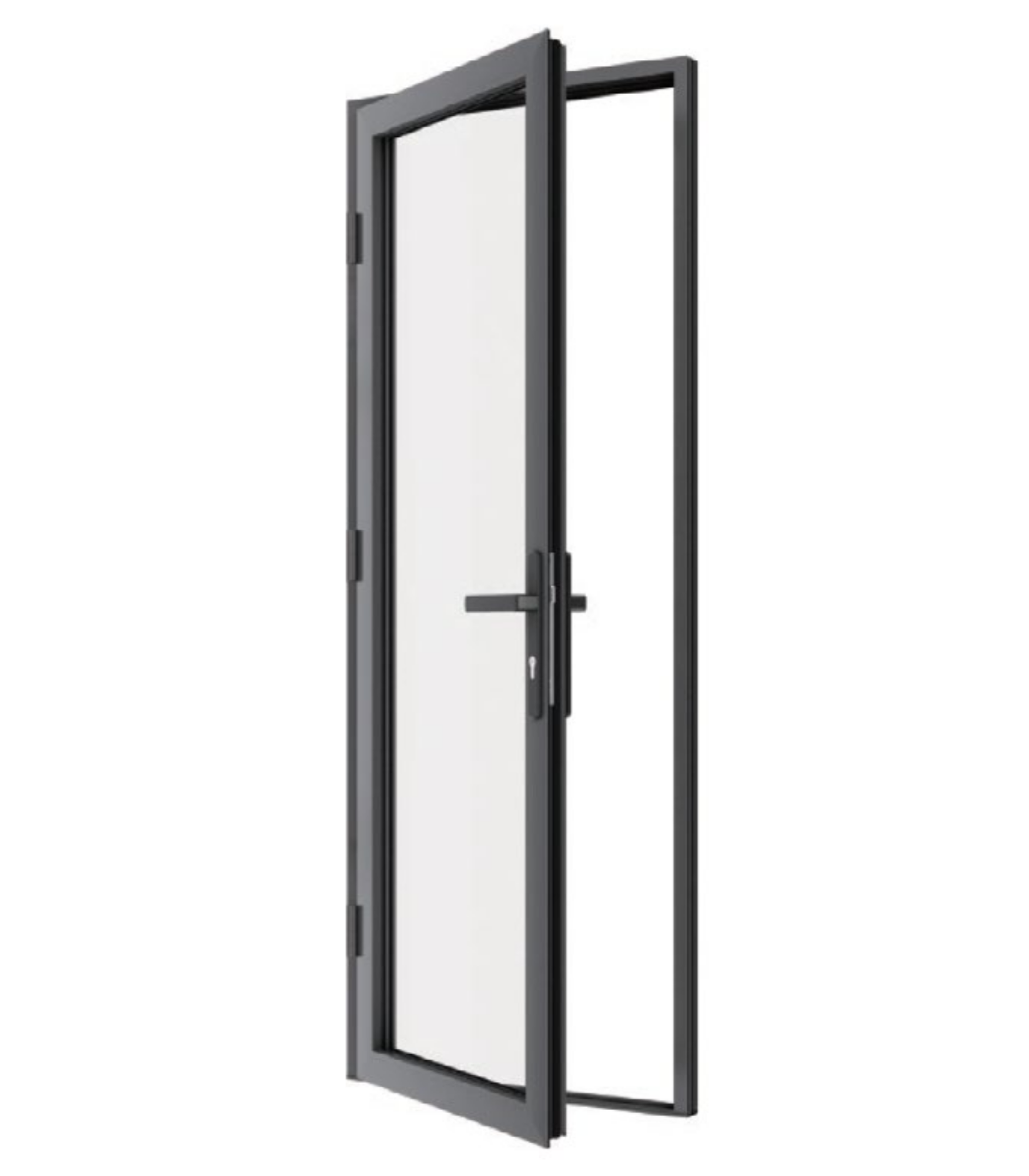

The VLX 100 is a single entry swing door built around a slim aluminum profile that measures 2.56 inches wide. It’s engineered for homeowners who want the look of a modern architectural door, the kind you see on custom builds in neighborhoods like South Hills or the hillside homes above Eastland Center, but without the frame bulk that older aluminum doors carried. The minimalist frame maximizes glass area, so natural light reaches further into the entryway.

Structurally, the door uses a 0.098-inch wall thickness in its aluminum extrusion. That may sound like a small number, but in aluminum door engineering it’s the difference between a door that stays square over a decade of West Covina sun and one that starts binding at the latch by year three. The frame is designed to hold up to a 48-inch wide slab, which covers most single entry openings in West Covina homes built from the 1950s through today’s new construction.

Why do buyers choose this series over a steel or fiberglass door? Thermal performance, weight, and sightlines. Aluminum doesn’t rust the way steel skins do in coastal-adjacent humidity, and it doesn’t swell or warp like wood. The multi-point locking system, which engages at multiple points along the frame rather than a single deadbolt location, gives you security that a standard entry door can’t match. And because Hale Windows West Covina supplies this as a complete system rather than a slab-only retrofit, every component, hinge, weatherstripping, threshold, and lock, arrives matched and tested.

This door fits especially well on mid-century ranch homes and modern remodels across West Covina, but the finish options we’ll cover below let it blend into more traditional facades as well. Call (707) 506-0502 to schedule a measurement appointment, and we’ll confirm your rough opening works for this series.

Technical Specifications

• Frame material: Extruded aluminum with 0.098″ wall thickness
• Profile width: 2.56 inches (slim sightline frame)
• Maximum slab width: 48 inches
• Glass options: Clear, frosted, obscure, Low-E, tempered, laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or none
• Locking: Multi-point locking system engaging at three or more points along the jamb
• Thermal performance: Thermal break technology, NFRC-rated energy values available per configuration
• Installation compliance: AAMA 2400/2410 installation standards, AAMA 812 low-expansion foam sealant on perimeter joints

Every VLX 100 we order for West Covina clients is configured door-by-door. Glass package, finish, threshold height, and swing direction (left or right, in-swing or out-swing) are all specified before the order goes to ViewLux. There’s no rack of pre-built doors to pick from, which means your door arrives sized to your opening, not shimmed into a rough fit.

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break, a non-conductive barrier separating the interior and exterior aluminum faces, to stop heat from conducting through the frame. In West Covina, where summer afternoon temperatures routinely cross 95°F, this keeps the interior frame face from radiating heat into your entryway. NFRC-rated performance values are available for each glass and frame combination we quote.

Acoustic Performance – If your home faces a busy street, think portions of Azusa Avenue, Cameron Avenue, or the commercial corridors near the West Covina mall, sound control matters. Laminated glass in the VLX 100 measurably reduces exterior noise compared to standard annealed glass. The compression weatherstripping around the full perimeter also closes the small air gaps through which sound travels.

Airtightness & Weather Seal – The multi-point locking system does more than secure the door. By engaging at multiple points along the frame, it pulls the slab tight against the weatherstripping at the top, bottom, and both jambs. That compression seal is what gives the door its airtightness rating, and it’s one reason we set every door carefully to make sure the lock engages fully without fighting the frame.

Waterproofing – Entry doors in West Covina don’t see heavy rainfall often, but when the winter storms hit, a failed perimeter seal shows up fast. We install every VLX 100 per AAMA 812, using low-expansion foam sealant on all perimeter joints, and we set the threshold with proper slope and drainage. The sill design channels water outward, not into the rough opening.

Wind Resistance – The VLX 100 is wind-load rated for the climate requirements in our region. For homeowners in the hillside areas of West Covina where wind exposure is stronger, we can configure the door with laminated or tempered glass to meet higher design pressure ratings. We’ll confirm the right spec based on your exact location and exposure.

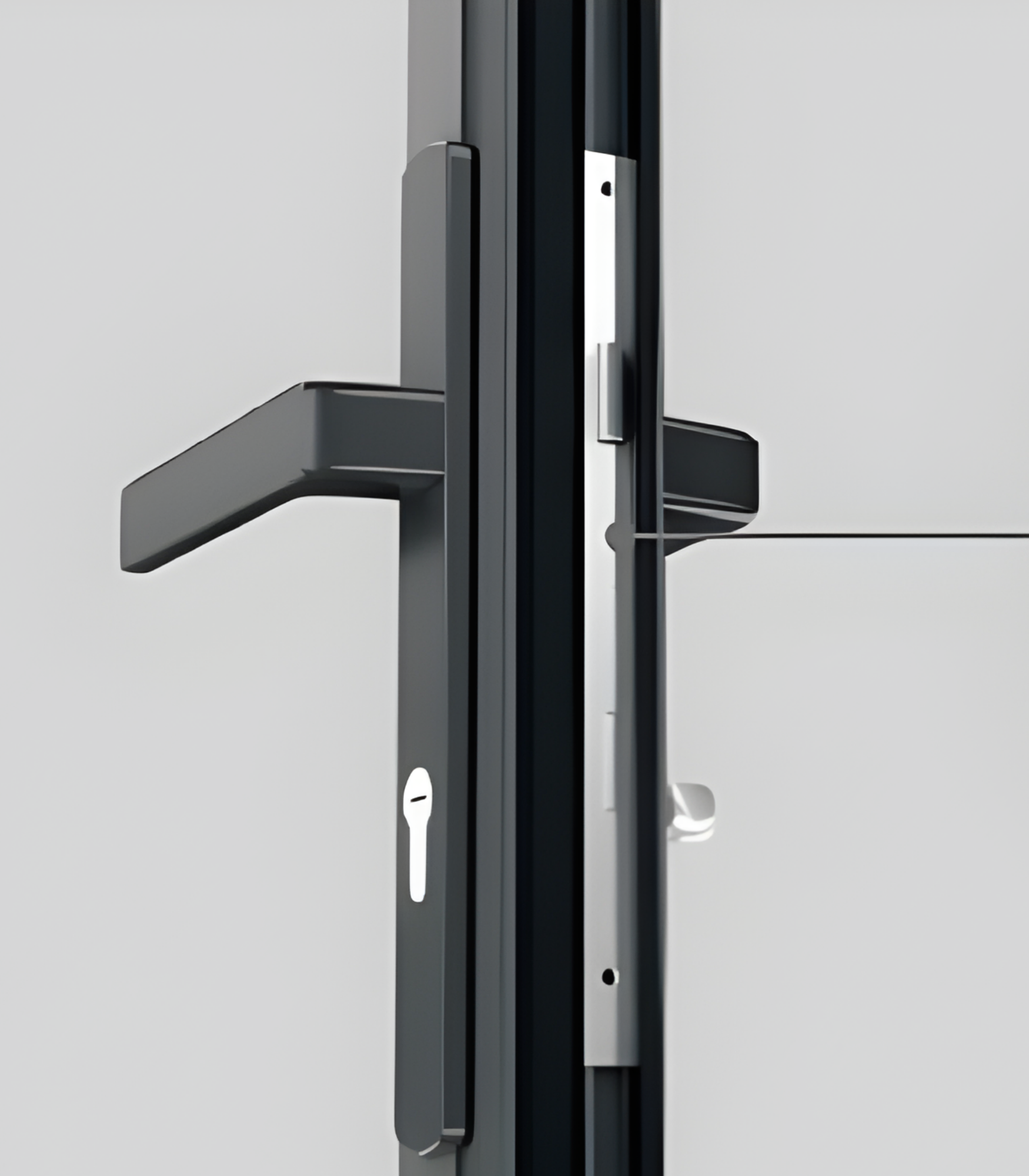

Security & Hardware – Multi-point locking means the door engages at the top, bottom, and center of the frame when you lift the handle and turn the key. Forced-entry resistance goes up dramatically compared to a single deadbolt. Laminated glass adds another layer: it holds together when struck, making entry through the glass significantly slower and louder.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested finish for modern and contemporary homes across West Covina, especially paired with black-framed ViewLux windows. It creates a sharp, clean facade line. Pure White works well on traditional and Spanish-style homes where a darker door would feel too heavy. Anodized Silver leans industrial and pairs naturally with aluminum storefront-style windows. Bronze and Champagne are quieter, warmer metallics that read upscale without being loud. Teak Wood gives you the look of natural wood grain without any of the maintenance, and it is surprisingly convincing from five feet away.

Glass choice depends on privacy, light, and safety. Clear glass maximizes light but leaves your entry visible. Frosted and obscure glass provide privacy while still letting light through, and obscure patterns vary from subtle to decorative. Low-E glass improves the door’s energy performance, reducing heat gain through the glass during Southern California summers. Tempered glass meets safety glazing requirements for doors and nearby sidelites. Laminated glass combines security and sound control, and it remains intact if shattered.

Not sure what fits your home in West Covina? We’ll bring finish samples and glass mockups to your consultation so you’re choosing from real materials, not a website swatch.

Installation by Hale Windows West Covina in West Covina

Here’s the part that separates a good door from a good door installed properly. We perform a pre-install inspection before any work begins. That means checking the rough opening dimensions, verifying the substrate around the opening is sound, and identifying any existing water damage or rot that needs addressing before the new door goes in. If there’s a problem behind the wall, better to find it before the door is in the opening.

During installation, every VLX 100 is set level, plumb, and square. We do not rush this step, and we do not accept “close enough.” An aluminum entry door that’s out of square will bind at the hinges, leak air at the compression seals, and compromise the multi-point lock engagement. The margin for error on a door with this tight a frame profile is small, which is why this is not a casual weekend project.

Perimeter sealing follows AAMA 812 standards, using low-expansion foam on all joints so the seal holds without distorting the frame. The threshold is set with correct slope for drainage. The entire installation adheres to AAMA 2400/2410 installation practice, which means the door is anchored to the structure, flashed, and sealed to prevent water from ever reaching the rough opening.

After the door is hung and adjusted, we run a final water test and check the lock engagement point by point. We vacuum the work area and haul off the old door, hardware, and packaging. And here’s the honest part: a manufacturer’s warranty on an entry door is only as good as the installation underneath it. Improperly installed doors, shimmed poorly or sealed with the wrong materials, fail early and the warranty won’t save you. That’s exactly why ViewLux requires authorized installation partners, and Hale Windows West Covina is one of them. Call (707) 506-0502 to book your measurement.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in West Covina

A replacement entry door is a decision you’ll live with every day. Let’s get the numbers right the first time. Hale Windows West Covina provides written, line-item quotes with no change-order games. We’ll measure your opening, help you choose the glass and finish, and give you a firm price before you commit. Call (707) 506-0502 to schedule your free on-site measurement and start your project.

Written by the team at Hale Windows West Covina, serving West Covina, CA and surrounding communities.
